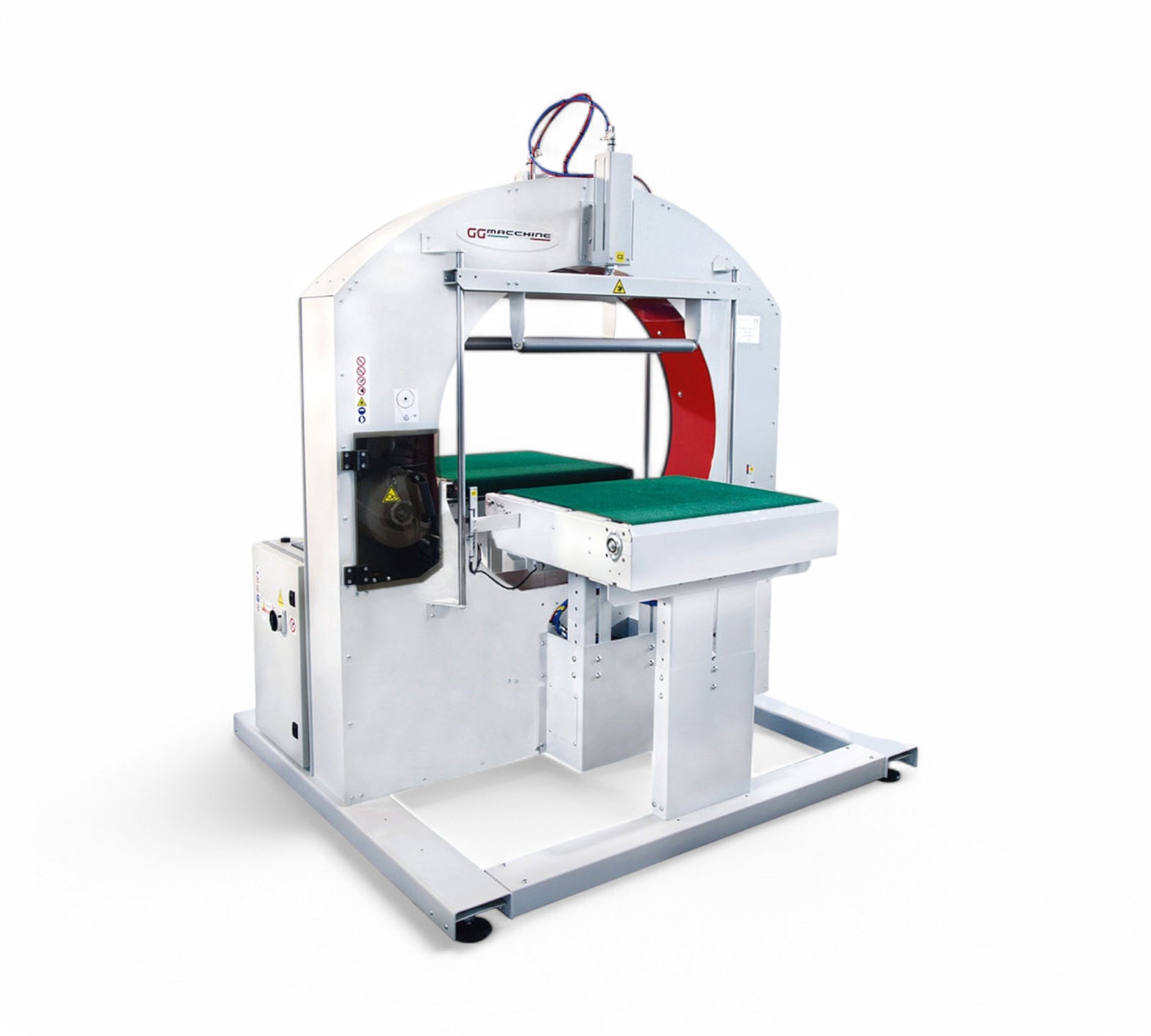

Flexible and User-Friendly Design: The Evoring-A series is engineered for versatility and ease of use, accommodating various product categories with different rotation unit diameters.
Wheels-Driven Ring Rotation: Ensures smooth and efficient wrapping by utilizing a robust wheels-driven ring rotation mechanism.
Adjustable Film Tension: Features a spool holder with a mechanically adjustable clutch, allowing precise control over film tension to suit diverse product sizes and shapes.

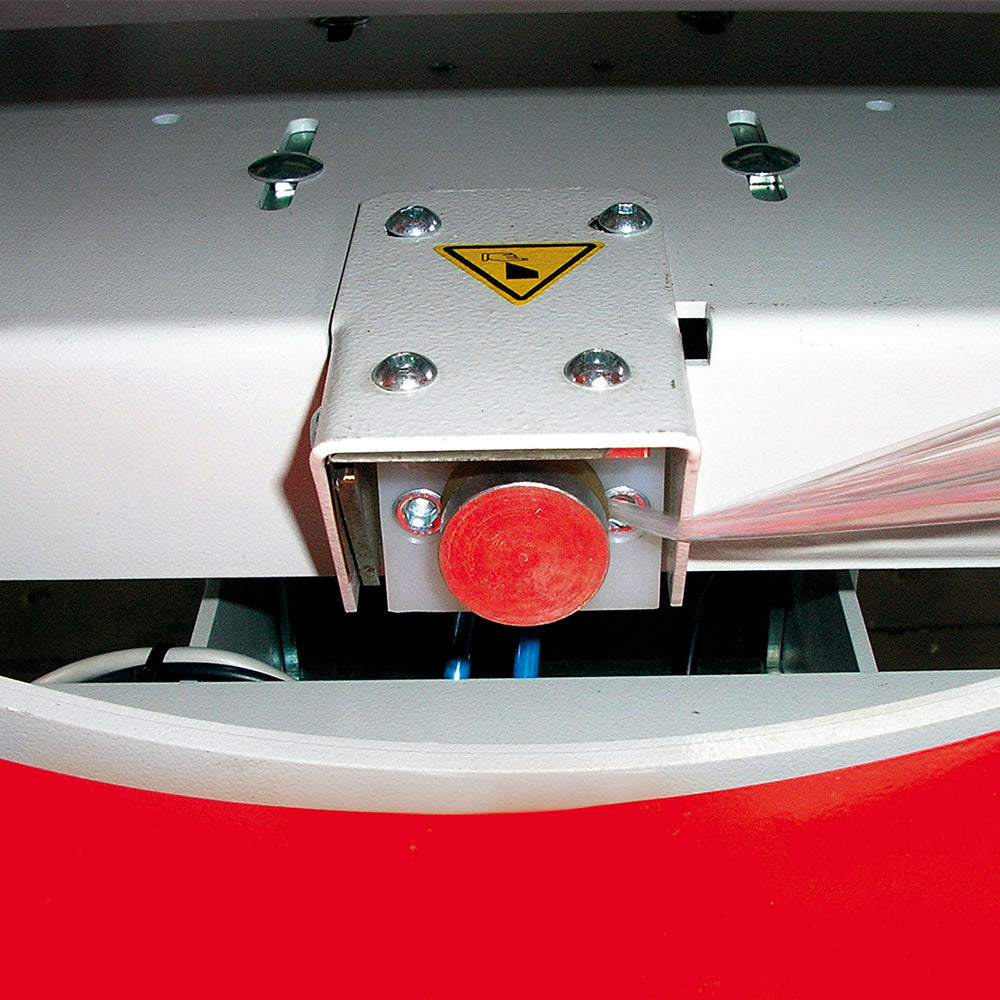

Automated Hooking, Holding, and Cutting Unit: Streamlines the wrapping process with an integrated system for automatic film hooking, holding, and cutting, reducing manual intervention.
Photocell Detection: Equipped with a photocell to detect product presence, enabling automatic start and stop of the wrapping cycle for enhanced efficiency.
PLC Control with Touch Screen Interface: Incorporates a programmable logic controller (PLC) with a user-friendly touch screen, facilitating easy management of machine functions and up to eight different banding types.
Variable Conveyor and Rotation Speeds: Allows adjustment of conveyor and rotation speeds via inverters, providing flexibility to handle various product specifications.
Infeed and Outfeed Band Conveyors: Includes band conveyors at both infeed and outfeed points, ensuring seamless product handling during the wrapping process.
Manually Adjustable Conveyor Height: Features a manually adjustable conveyor height to accommodate different product dimensions and optimize workflow.
Vertical Pneumatic Pressure Unit: Equipped with a vertical pneumatic pressure unit with free rollers at infeed and outfeed, ensuring product stability during wrapping.
Standard Air Pressure Requirements: Operates at an air pressure of 6 bar with a compressed air consumption of 5 NL/min, aligning with common industrial standards.
Standard Power Supply: Requires a power supply voltage of 220V, 50Ð60 Hz, single-phase, compatible with typical electrical systems.
