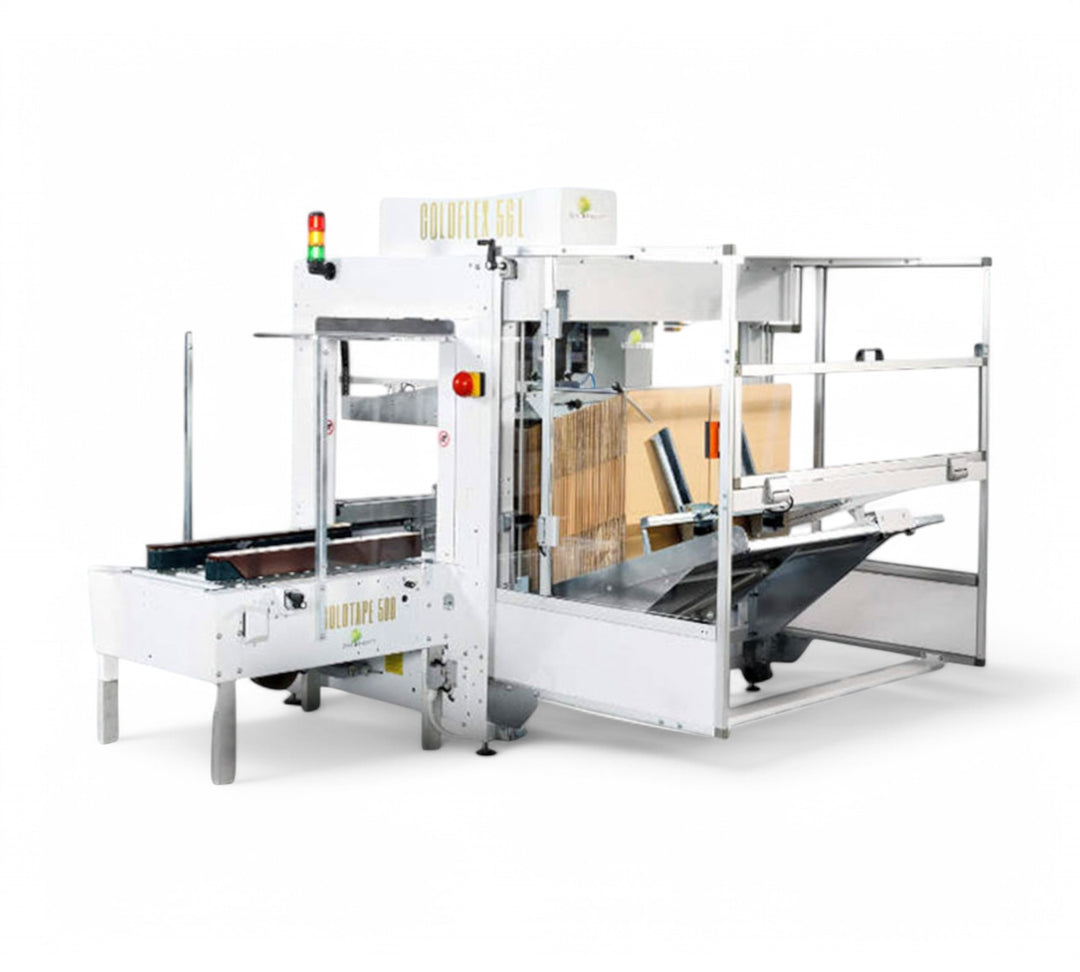

Goldflex 56L
Key Features:
- Automatic Box Formation: Automatically forms uniform-sized cartons and folds all four bottom flaps for streamlined packing efficiency.
- Seamless Integration: Designed to work in-line with bottom sealing machines like the GOLDTAPE 50B or GOLDTAPE B-HM for secure tape or hot melt sealing.
- Electronic Panel Operation: Features a user-friendly electronic control panel, with an optional PLC upgrade available for advanced programming needs.
- Electro-Pneumatic Drive: Delivers precise performance using a reliable electro-pneumatic mechanism for consistent box formation.
- Venturi Vacuum System: Utilizes suction cups powered by a Venturi system to accurately pick and place carton blanks into position.
- Quick Size Adjustments: Unique mechanical counters allow rapid, precise adjustments for different carton dimensions - ideal for facilities with varied SKUs.
- Advanced Safety Features: Equipped with RFID-coded safety guards for operator protection and compliance with modern safety standards.
- Ergonomic Design: Control panels and switches are thoughtfully placed for easy access and daily use.
- Clear Maintenance Access: Wide see-through panels offer full visibility of the machine's interior, simplifying routine servicing and troubleshooting.
Technical Specifications:
- Power Supply: 400 V / 50 Hz, three-phase
- Installed Power: 0.40 kW
- Air Consumption: 22 NL per cycle at 6 bar
- Protection Rating: IP 54 (dust and splash resistant)
- Operating Temperature: +5¡C to +35¡C
