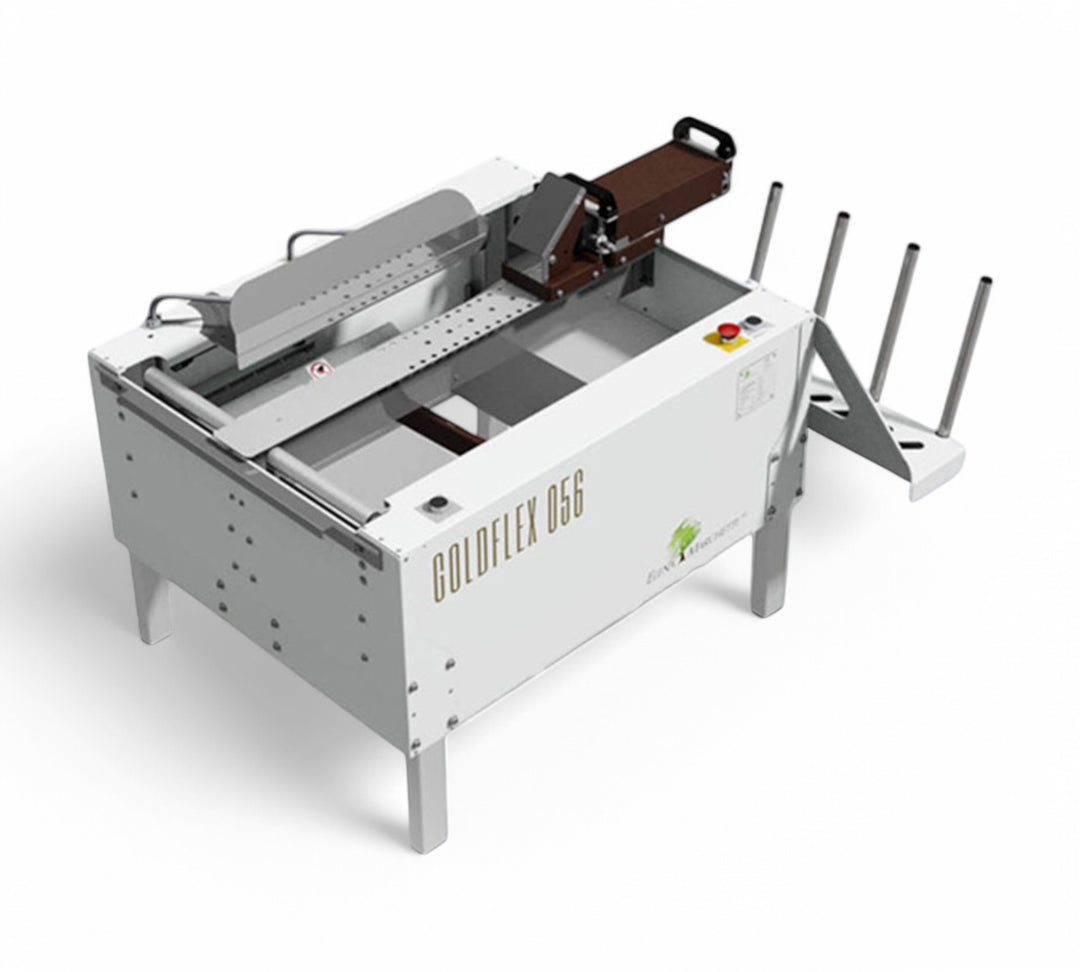

Goldflex 56P
Key Features:
- Semi-Automatic Case Erector: The Goldflex 056P is engineered to form uniform-sized boxes and fold all four bottom flaps, supporting the carton for efficient operator-assisted filling.
- Heavy-Duty Construction: Built tough for continuous use in demanding industrial environments, delivering long-term reliability.
- Quick Manual Adjustments: Box size changes are fast and simple with lateral guides and hand-wheel adjustments, minimizing downtime during transitions.
- Low Maintenance Design: Requires minimal servicing, reducing operational costs and avoiding unnecessary downtime.
- Side-Feed Blank Magazine: Holds carton blanks at the side for easy loading and uninterrupted production flow.
- Bottom Flap Closers: Built-in flap closers hold the base shut, enabling hassle-free filling of boxes before sealing.
- Integrated Roller Conveyor: A free-rolling conveyor helps boxes move smoothly into the sealing station, streamlining the packaging process.
- Pneumatic Pusher (GF056-P Model): Boxes are pushed into the sealing station with a pneumatic actuator, activated by the operator for controlled flow.
- Packaging Line Compatibility: Easily pairs with sealing or gluing machines and an out-feed conveyor to form a compact, semi-automatic packaging line.
Technical Specifications:
- Power Supply: 400V / 50Hz, three-phase
- Operating Temperature: +5¡C to +35¡C
- Output Speed: 600Ð800 boxes per hour
- Air Consumption: 6.0 NL per cycle at 6 bar
