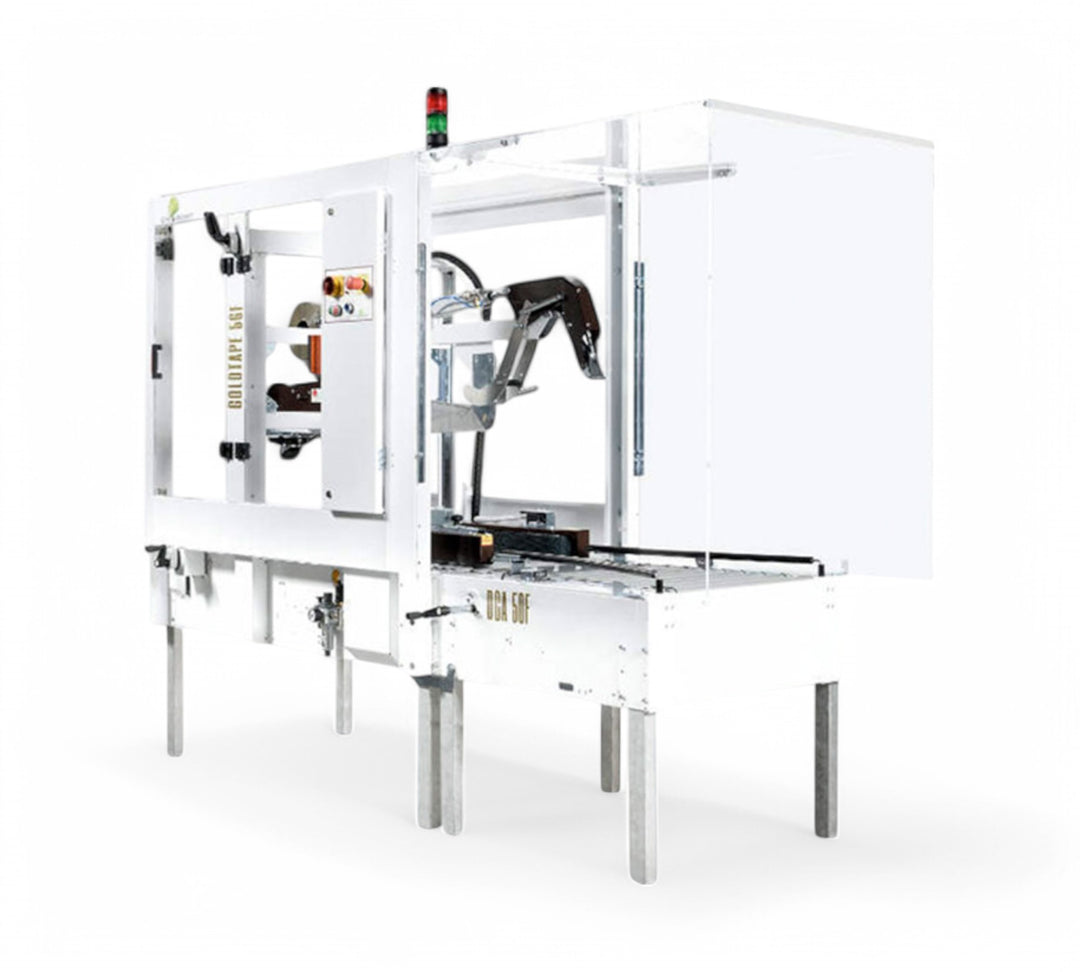

GoldTape 608FL
Key Features:
- Automatic Carton Sealing: The Goldtape 608FL automates top flap folding and simultaneously seals the top and bottom flaps with tape, streamlining your packaging line and increasing output.
- Side Belt Drive System: Features side belts powered by a single motor to ensure stable and aligned box movement through the sealing station.
- Four Side Pressure Rollers: Keeps top flaps securely closed during the sealing process, guaranteeing reliable and precise sealing.
- Rapid Size Adjustments: Equipped with precision counters for fast and easy transitions between box sizes, enhancing operational efficiency.
- Safety with RFID Coding: Advanced safety protections with RFID access control prevent unauthorized use and ensure operator protection.
- Ergonomic & Accessible Design: Features user-friendly control panels and wide see-through maintenance windows for ease of operation and servicing.
Technical Specifications:
- Power Supply: 400V / 50 Hz, three-phase
- Installed Power: 0.25 kW
- Air Consumption: 2.5 NL per cycle at 6 bar
- Electrical Protection: IP54
- Operating Temperature: +5¡C to +35¡C
- Productivity: Up to 1,300 boxes per hour
- Box Transfer Speed: 24 meters per minute
