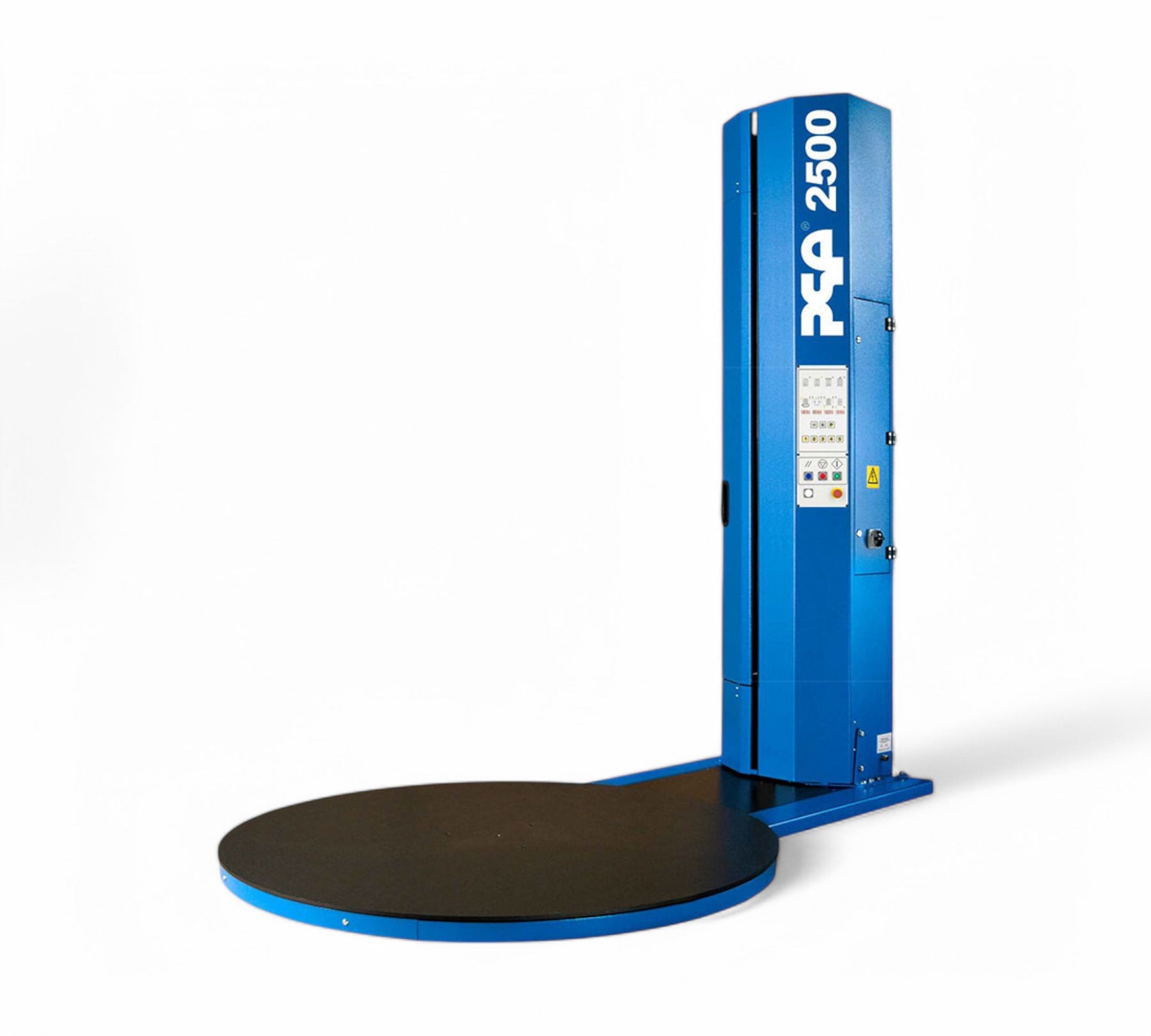

PSE 2500 Stretch Wrapping Machine

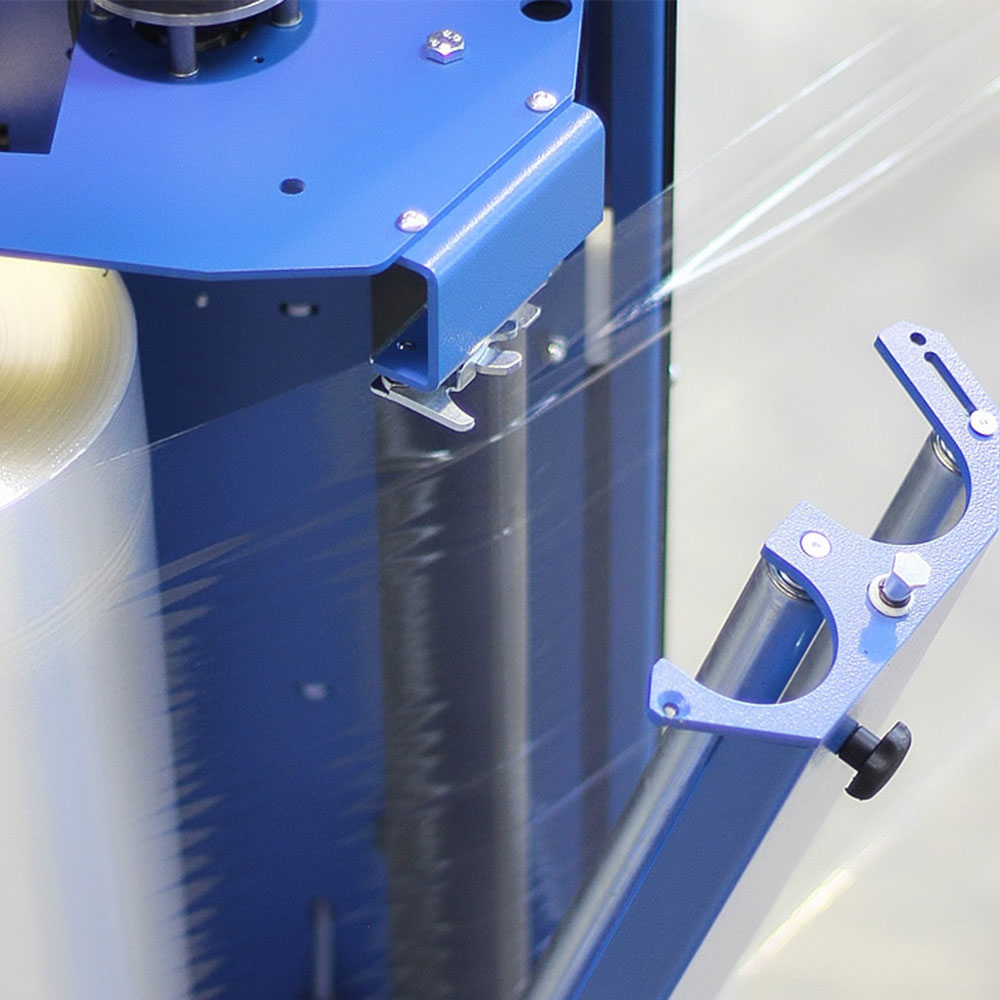

• Carriage Inside the Column: Enhances machine stability and protects the film carriage during operation.
• Easy-Access Door Opening System: Facilitates quick and comfortable film changes, minimizing downtime.
• Maintenance-Free Magnetic Powder Brake: Provides consistent braking force without wear, ensuring reliable performance.
• Automatic Wrapping Cycles: Offers three modes - single, cross, and rainproof - to accommodate various load requirements.
• Adjustable Turntable Speed: Ranges from 3 to 12 RPM, allowing customization based on load stability needs.
• Independent Lifting Speed Control: Adjustable between 0.7 to 4 m/min for both upward and downward movements, enhancing wrapping precision.
• Soft Start and Stop Function: Ensures gentle acceleration and deceleration of the turntable, preventing load displacement.
• Adjustable Bottom and Top Wrapping Rounds: Allows setting the number of wraps at the beginning and end of the cycle for added load security.
• Easy Adjustable String System: Improves the connection between the load and the pallet, enhancing stability during transport.

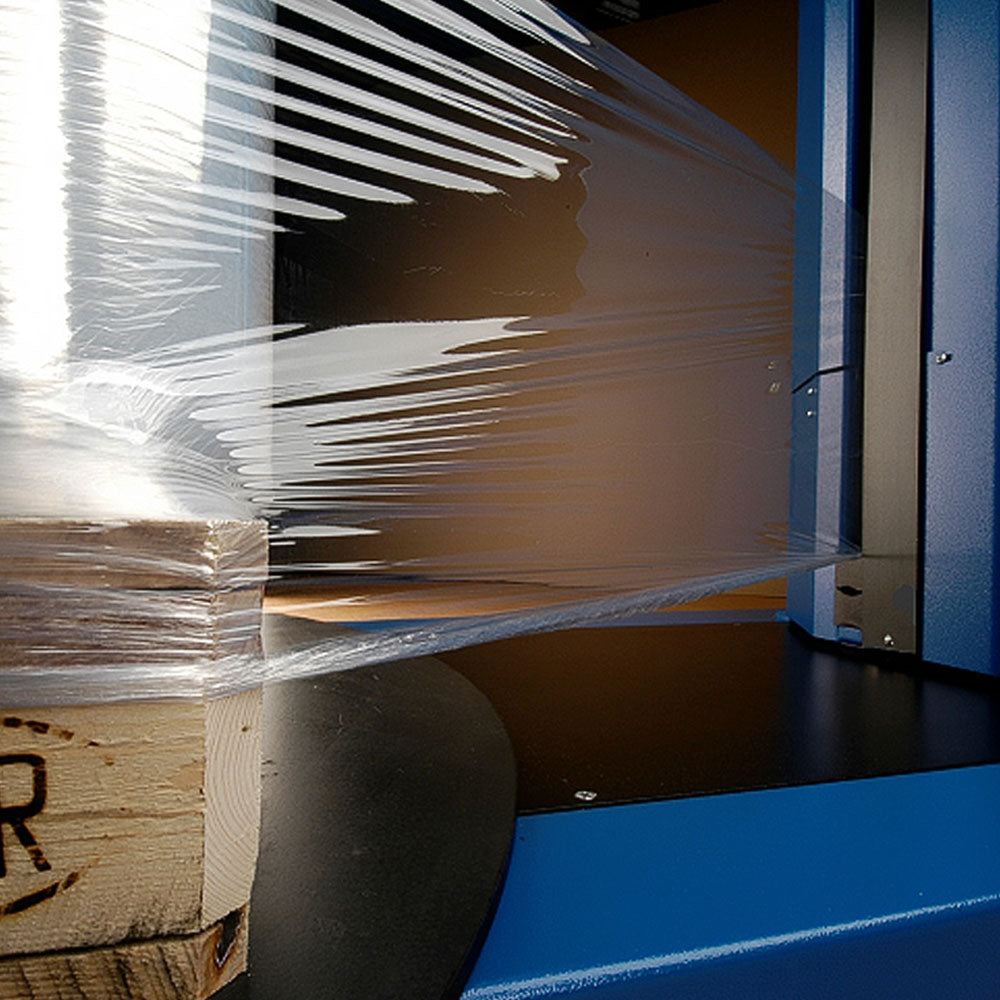

• Adjustable Film Tension: Configurable at four positions of the pallet to ensure optimal film application.
• Photocell for Automatic Height Detection: Automatically identifies the load height to apply the appropriate amount of film.

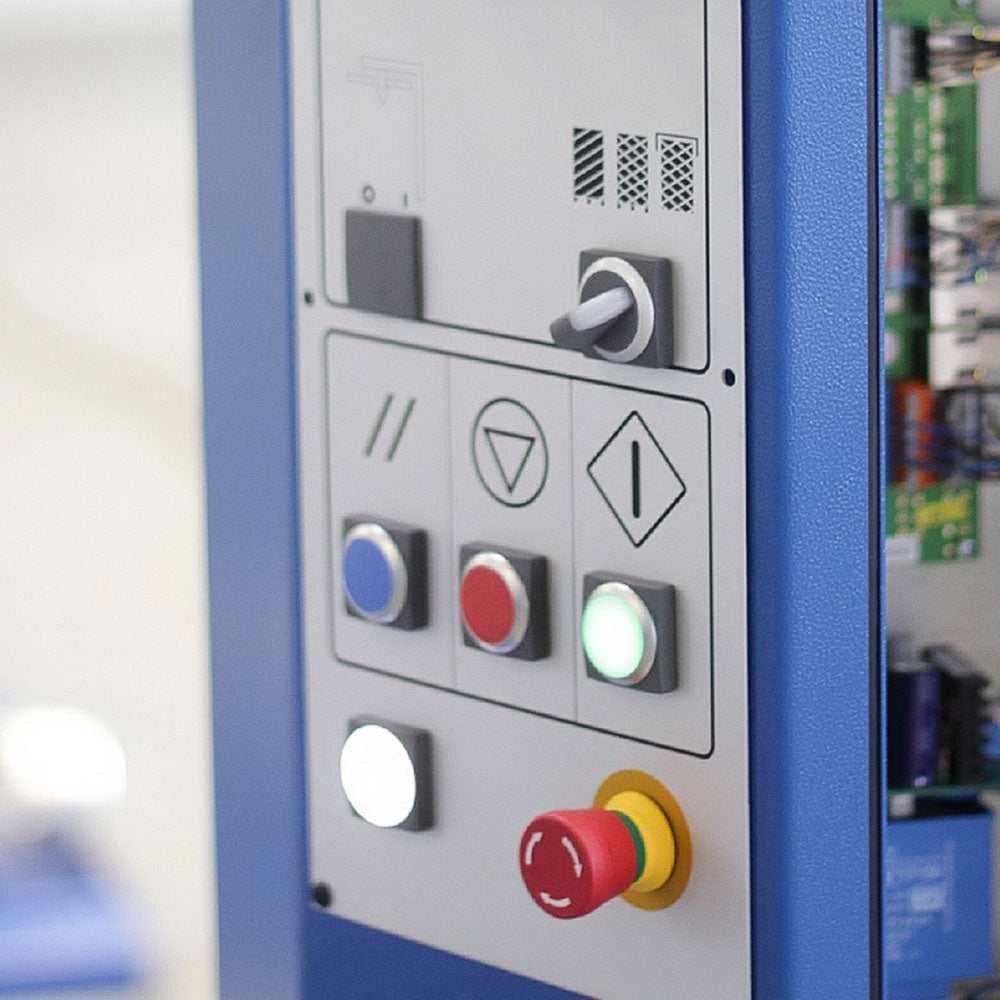

• User-Friendly Operation: Simple and self-explanatory symbols facilitate ease of use.

Optional Features:

• Ramps for Manual and Electric Lift Trucks: Enables easy loading and unloading of pallets onto the turntable.
• Pit Frame: Allows embedding the machine to use without a ramp, streamlining floor operations.
• Manual Top Sheet Dispenser: For additional protection of loads from dust and moisture.
• Photocell for Black Products: Ensures accurate detection and wrapping of dark-colored loads.
• Extended Column Height: Accommodates taller pallets by increasing the wrapping height.
• Extended Base Dimensions: Provides stability for larger pallet sizes.

Technical Specifications:

• Dimensions:
  • Length: 2575 mm
  • Width: 1650 mm
  • Turntable Size: 1650 mm
  • Turntable Height: 68 mm
  • Machine Height: 2562 mm
  • Machine Weight: 520 kg
• Maximum Pallet Dimensions: 1100 x 1200 mm
• Maximum Pallet Height: 2400 mm
• Maximum Pallet Weight: 2000 kg
• Power Supply: 230V, 1Ph+N+PE, 50Hz, 16A
