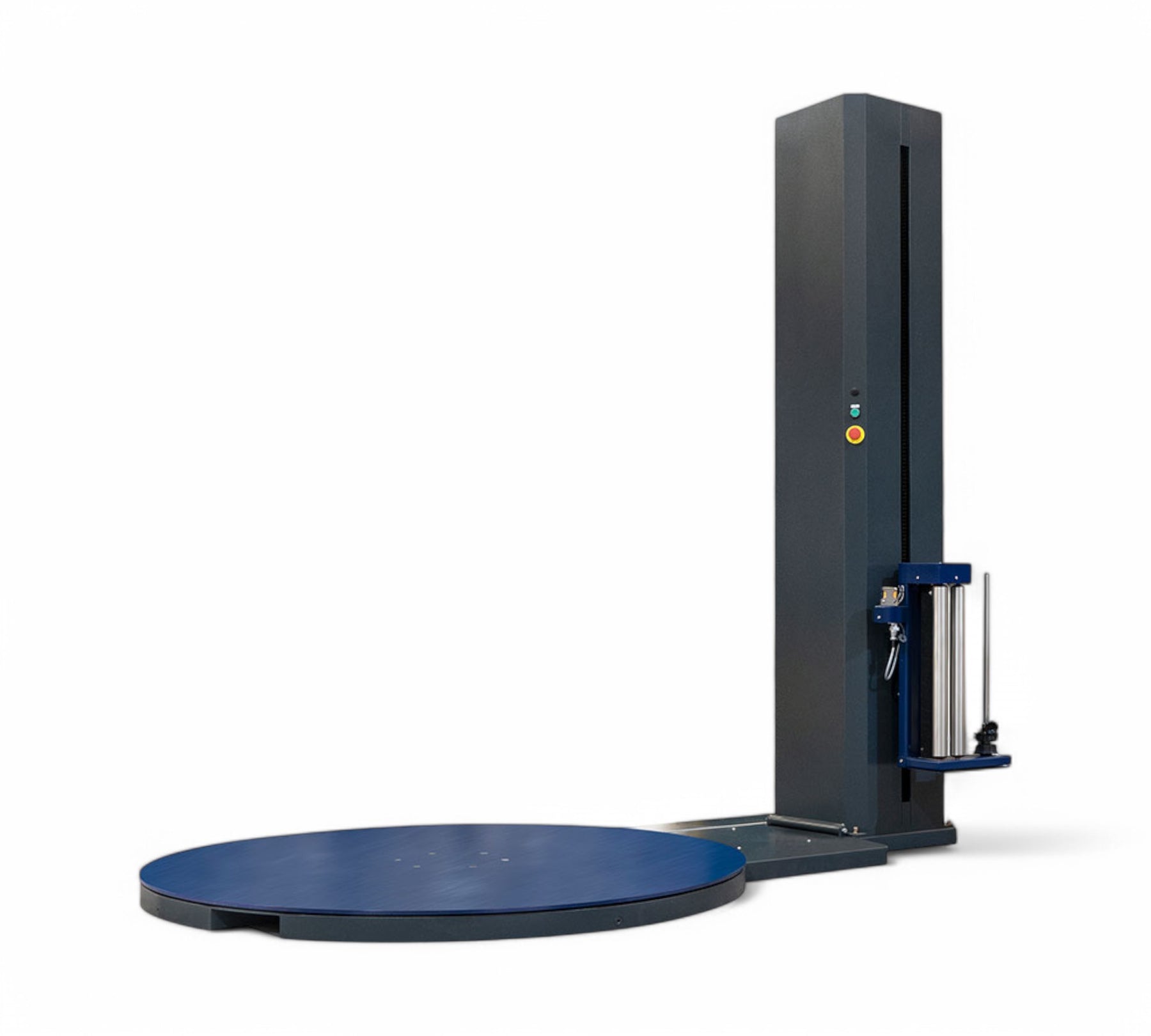

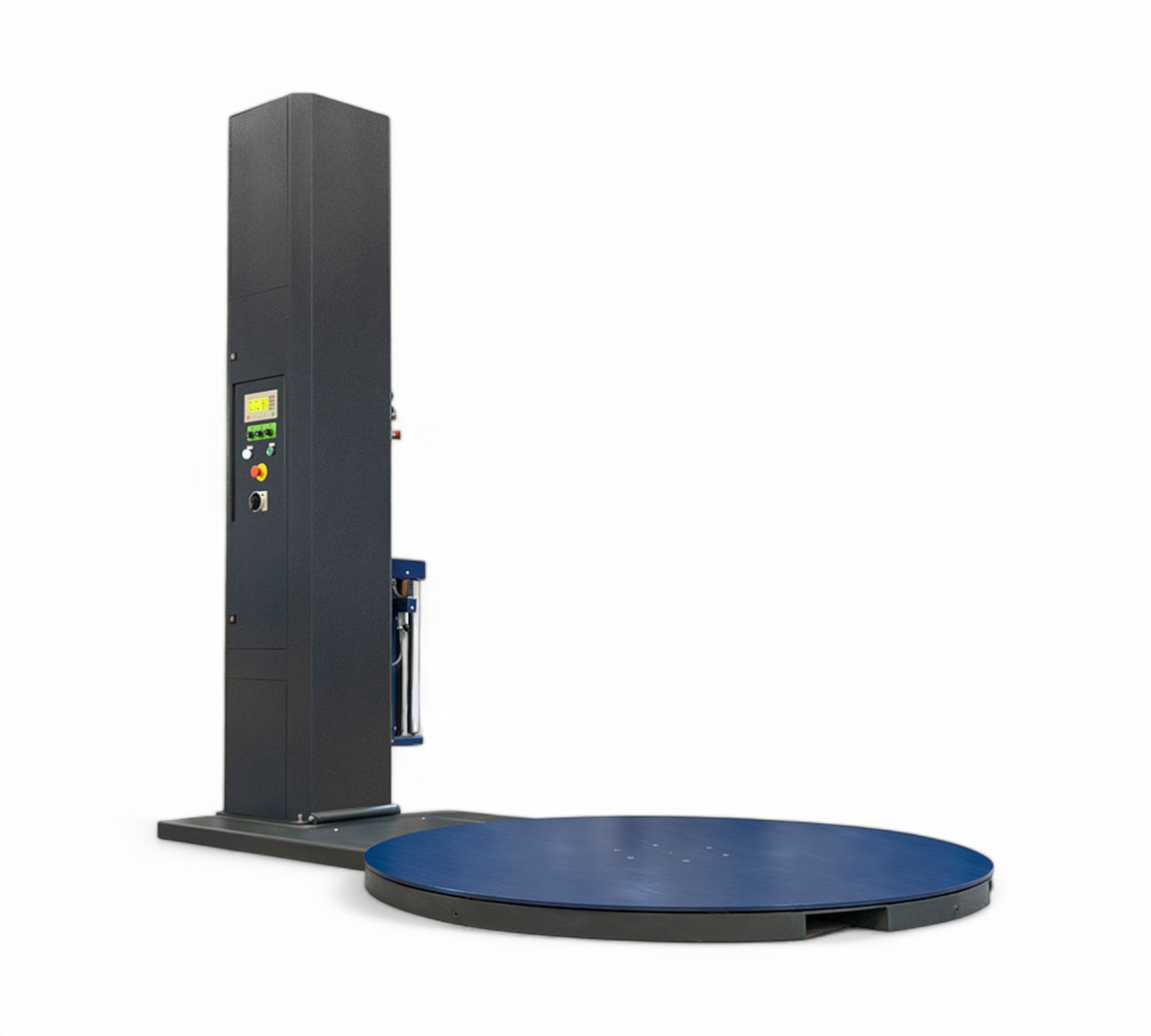

PSE 5000 Stretch Wrapping Machine

Key Features:

• Electromagnetic Film Tension System: Ensures consistent film application for optimal load stability.
• Heavy-Duty Turntable Rollers: Designed to handle substantial loads with ease.
• Black Height Photocell: Accurately detects dark objects for precise wrapping.
• Dual Start & Stop Buttons: Conveniently located on both sides of the mast for easy operation.
• Adjustable Wrapping Cycles: Offers three automatic wrapping cycles to suit various load requirements.
• User-Friendly Controls: Features adjustable knobs for film tension, turntable speed, and carriage speed.
• Touch Panel Screen: Simplifies operation with intuitive interface.
• Adjustable Top & Bottom Wraps: Allows customization for enhanced load security.
• Variable Carriage & Turntable Speed: Provides flexibility to accommodate different wrapping needs.
• Wrap Cycle Counter: Monitors usage for maintenance and efficiency tracking.
• Forklift Transportable: Accessible from both ends for easy relocation (excluding PSE5300 model).

Optional Features:

• Extended Column Height: Increases wrap height with no limit, accommodating taller loads.
• Heavy-Duty Turntable Capacity: Supports up to 3,000 kg for heavier pallets.
• Pallet Spacer: Enables wrapping film underneath the pallet for added stability.
• Top Platen: Stabilizes unstable loads during the wrapping process.
• Loading Ramp: Facilitates easy loading and unloading of pallets.
• Forklift Bumper Stop: Enhances safety during forklift operations.

Technical Specifications:

• Turntable Diameter: 1,650 mm
• Maximum Load Height: 2,400 mm
• Maximum Load Weight: 2,000 kg
• Power Supply: 240V single-phase
• Machine Dimensions: 2,400 mm (L) x 1,650 mm (W) x 2,500 mm (H)

Benefits:

• Enhanced Load Stability: Consistent film application ensures secure pallet loads during transit.
• Operational Efficiency: Automatic cycles and user-friendly controls reduce wrapping time and labor costs.
• Versatility: Adjustable settings accommodate a wide range of pallet sizes and load types.
• Durability: Heavy-duty components provide long-lasting performance in demanding industrial environments.
