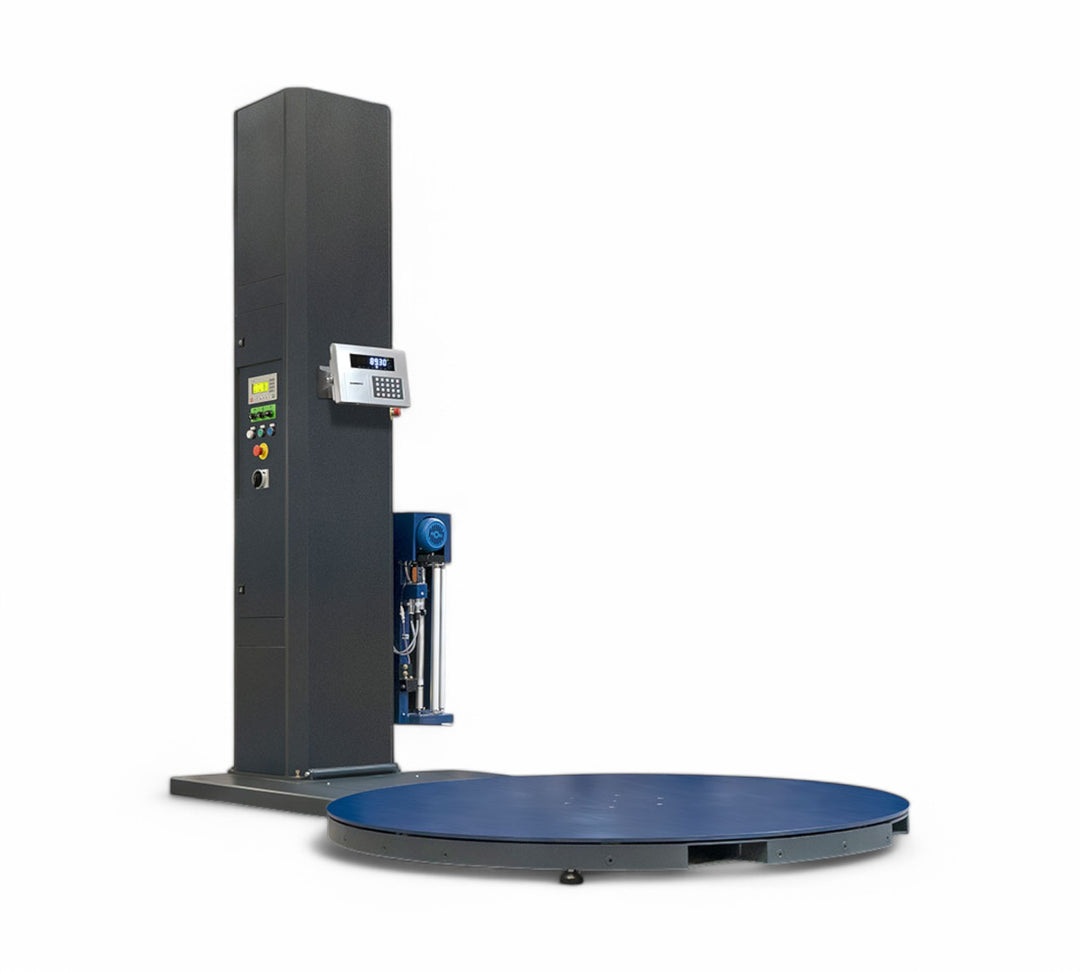

PSE 5200 Stretch Wrapping Machine

Key Features:

• 200% Power Control Stretch System: Extends 1 meter of film to 3 meters, ensuring maximum load retention and significant film savings.
• Integrated Turntable Scales: Allows simultaneous wrapping and weighing, streamlining operations and eliminating double handling.
• Black Height Photocell: Accurately detects dark objects for precise wrapping.
• Three Automatic Wrapping Cycles: Offers versatility to suit various load requirements.
• User-Friendly Adjustable Knobs: Controls for film tension, turntable speed, and carriage speed.
• Touch Panel Screen: Simplifies operation with an intuitive interface.
• Adjustable Top & Bottom Wraps: Allows customization for enhanced load security.
• Variable Carriage & Turntable Speed: Provides flexibility to accommodate different wrapping needs.
• Wrap Cycle Counter: Monitors usage for maintenance and efficiency tracking.
• Forklift Transportable: Accessible from both ends for easy relocation (excluding PSE5300 model).
• Heavy-Duty Turntable Rollers: Designed to handle substantial loads with ease.

Optional Features:

• Extended Column Height: Increases wrap height with no limit, accommodating taller loads.
• Heavy-Duty Turntable Capacity: Supports up to 3,000 kg for heavier pallets.
• Pallet Spacer: Enables wrapping film underneath the pallet for added stability.
• Top Platen: Stabilizes unstable loads during the wrapping process.
• Loading Ramp: Facilitates easy loading and unloading of pallets.
• Forklift Bumper Stop: Enhances safety during forklift operations.

Technical Specifications:

• Turntable Diameter: 1,650 mm
• Maximum Load Height: 2,400 mm
• Maximum Load Weight: 2,000 kg
• Power Supply: 240V single-phase
• Machine Dimensions: 2,400 mm (L) x 1,650 mm (W) x 2,500 mm (H)

Benefits:

• Enhanced Load Stability: Consistent film application ensures secure pallet loads during transit.
• Operational Efficiency: Automatic cycles and user-friendly controls reduce wrapping time and labor costs.
• Versatility: Adjustable settings accommodate a wide range of pallet sizes and load types.
• Durability: Heavy-duty components provide long-lasting performance in demanding industrial environments.
