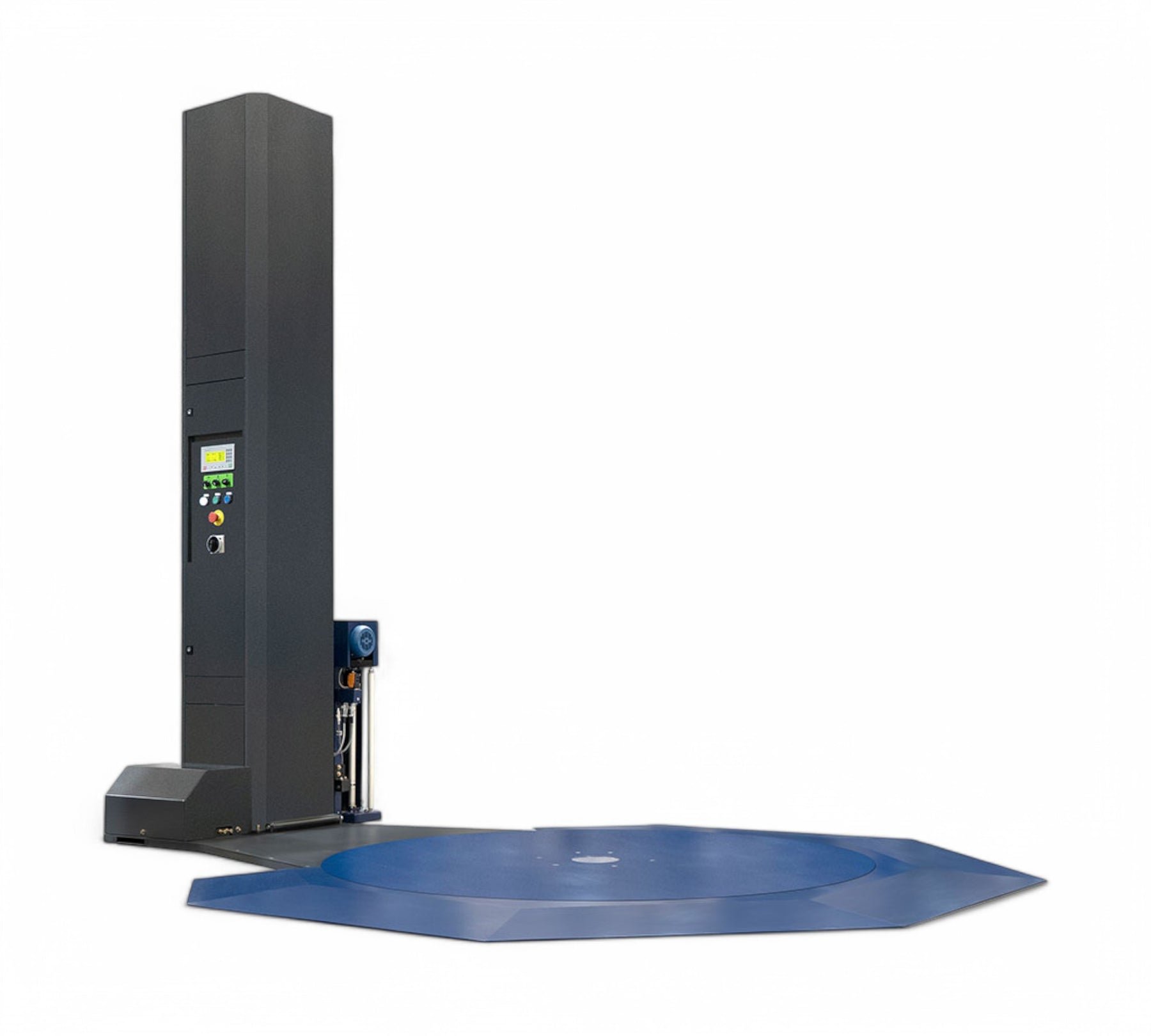

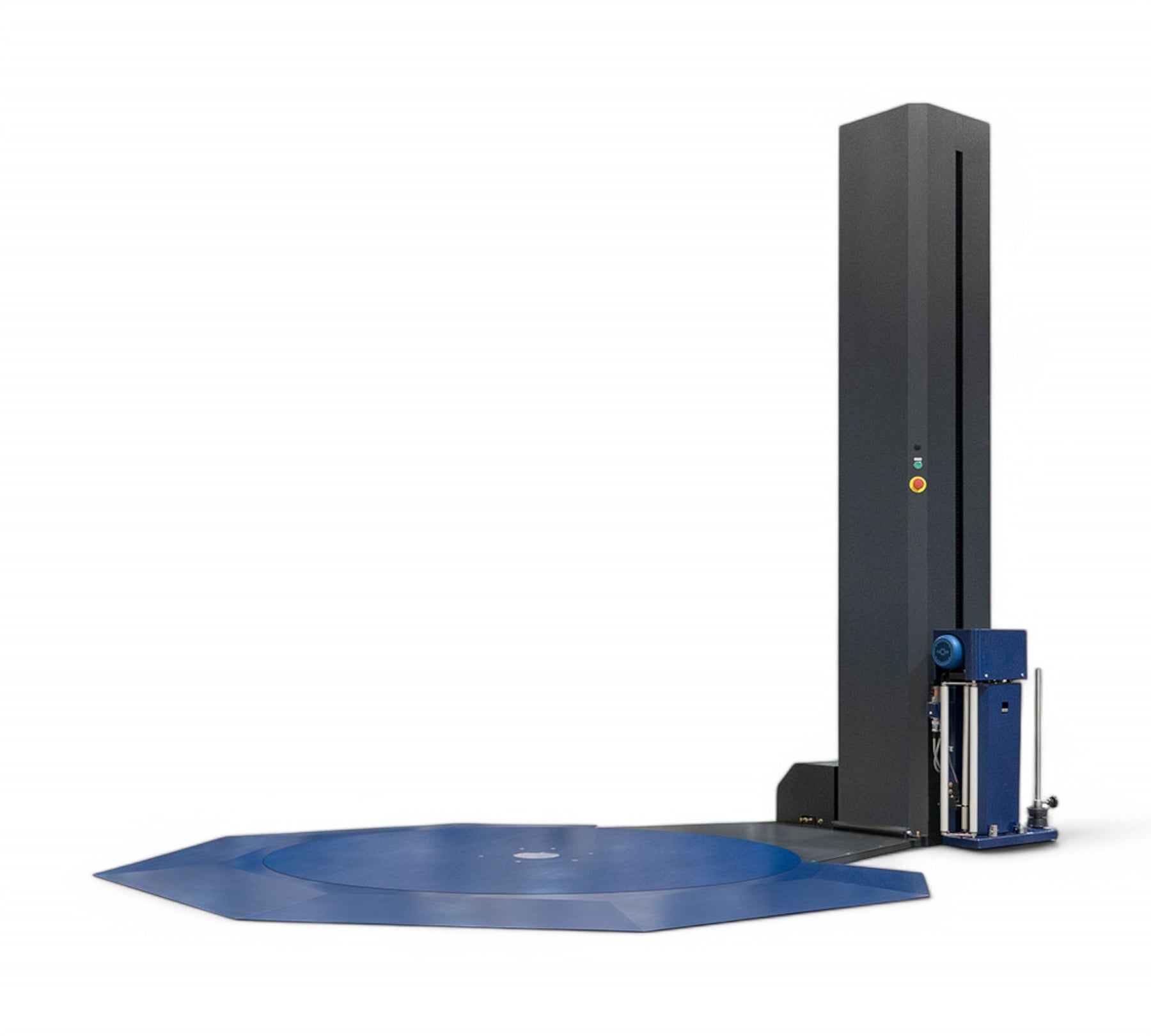

PSE 5300 Stretch Wrapping Machine
Key Features:
- Low 30mm Profile Turntable: Facilitates easy loading and unloading, especially designed for use with hand and battery forklift trucks.
- In-Built Ramp with 270¡ Access: Provides versatile entry points, enhancing operational efficiency.
- 200% Power Control Stretch System: Extends 1 meter of film to 3 meters, ensuring maximum load retention and significant film savings.
- Black Height Photocell: Accurately detects dark objects for precise wrapping.
- Three Automatic Wrapping Cycles: Offers versatility to suit various load requirements.
- User-Friendly Adjustable Knobs: Controls for film tension, turntable speed, and carriage speed.
- Touch Panel Screen: Simplifies operation with an intuitive interface.
- Adjustable Top & Bottom Wraps: Allows customization for enhanced load security.
- Variable Carriage & Turntable Speed: Provides flexibility to accommodate different wrapping needs.
- Wrap Cycle Counter: Monitors usage for maintenance and efficiency tracking.
- Heavy-Duty Turntable Rollers: Designed to handle substantial loads with ease.
Optional Features:
- Extended Column Height: Increases wrap height with no limit, accommodating taller loads.
- Heavy-Duty Turntable Capacity: Supports up to 3,000 kg for heavier pallets.
- Pallet Spacer: Enables wrapping film underneath the pallet for added stability.
- Top Platen: Stabilizes unstable loads during the wrapping process.
- Loading Ramp: Facilitates easy loading and unloading of pallets.
- Forklift Bumper Stop: Enhances safety during forklift operations.
Technical Specifications:
- Turntable Diameter: 1,650 mm
- Maximum Load Height: 2,400 mm
- Maximum Load Weight: 2,000 kg
- Power Supply: 240V single-phase
- Machine Dimensions: 2,400 mm (L) x 1,650 mm (W) x 2,500 mm (H)
Benefits:
- Enhanced Load Stability: Consistent film application ensures secure pallet loads during transit.
- Operational Efficiency: Automatic cycles and user-friendly controls reduce wrapping time and labor costs.
- Versatility: Adjustable settings accommodate a wide range of pallet sizes and load types.
- Durability: Heavy-duty components provide long-lasting performance in demanding industrial environments.
