Vigano Mario PR 1300 AR

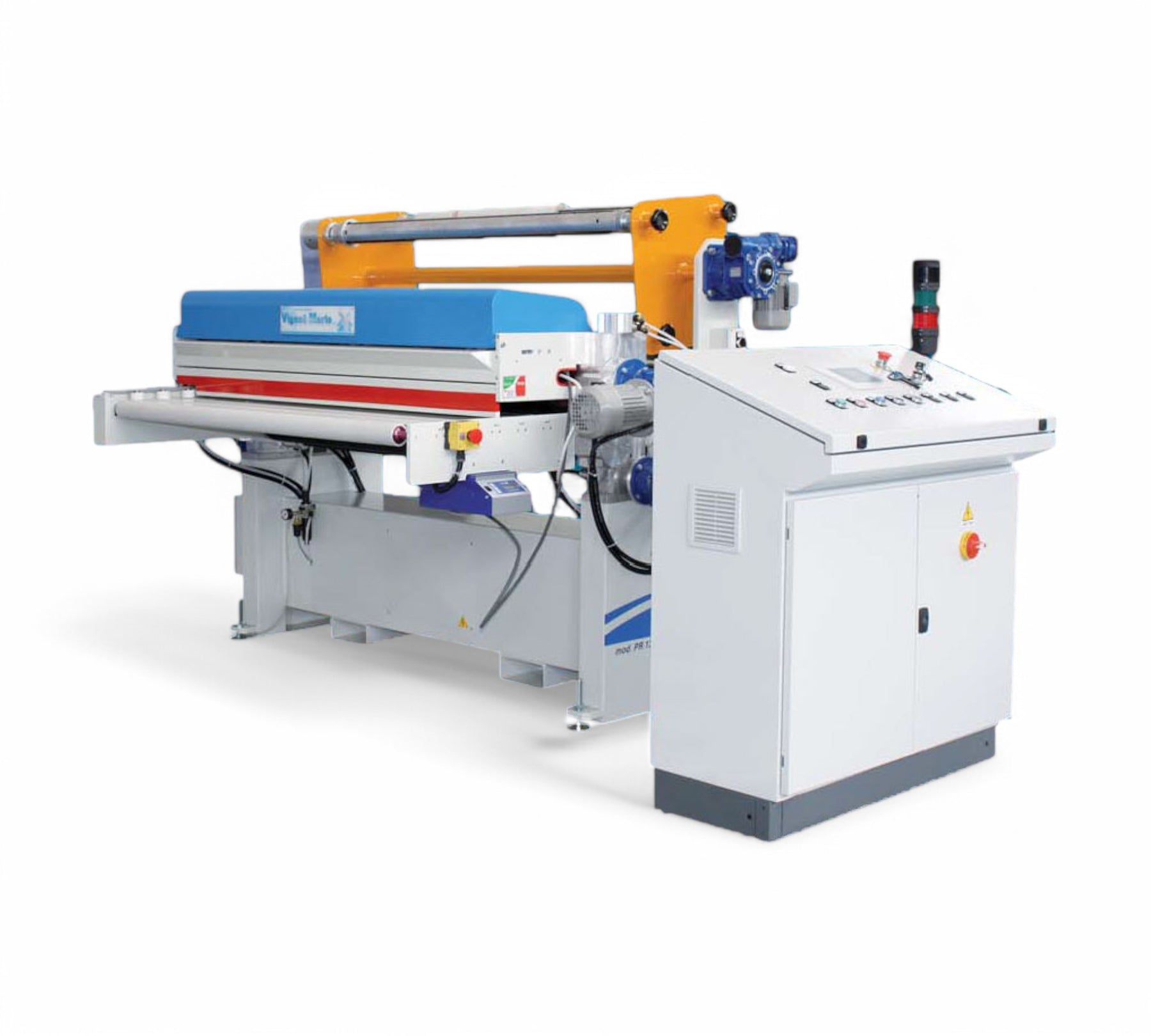

Vigano Mario PR 1300 AR Dual-Sided Protective Film Applicator

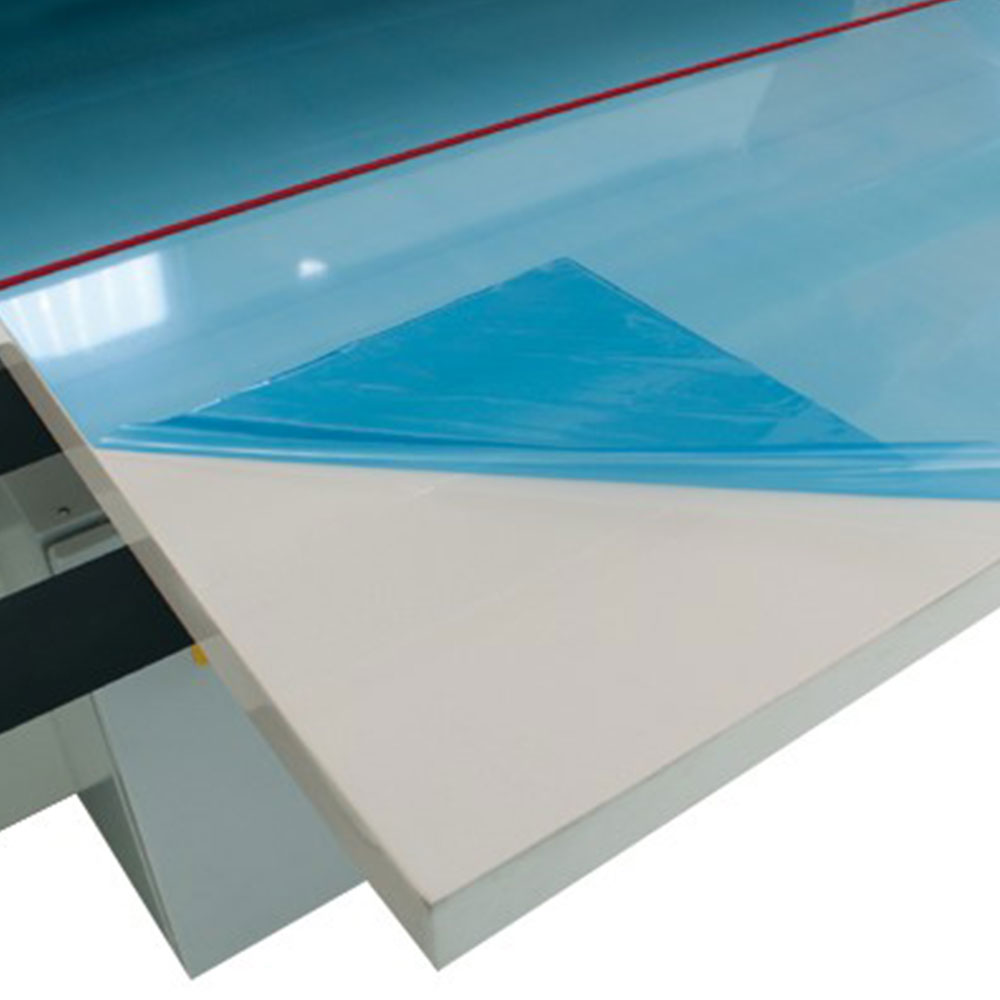

The Vigano Mario PR 1300 AR is a high-performance machine engineered to apply self-adhesive removable protective film to both the top and bottom surfaces of flat panels simultaneously. Ideal for demanding industrial environments, it offers precision, durability, and superior efficiency in protective packaging applications.

Key Features:

• Dual-Sided Film Application: Applies protective film to both sides of flat surfaces in a single pass for complete coverage and damage prevention.
• Automatic Film Cutting: Integrated cutting mechanism extends the film 5Ð30 mm beyond the panel, offering flexible coverage options.
• Heavy-Duty Frame: Electrically-welded steel construction ensures maximum durability and operational stability.
• Adjustable Table Height: Set at 900 mm ±10 mm for ergonomic operation and easy integration into existing workflows.
• Encoder-Controlled Motorized Rollers: 60 mm diameter rollers, motorized on both top and bottom, ensure smooth, precise panel movement.
• Variable Speed Settings: Adjustable application speed from 10 to 30 meters per minute to suit different materials and workflow needs.
• Touchscreen Operator Interface: Control panel with touchscreen and push-button access provides intuitive operation and real-time monitoring.
• Safety Hood: Opening protection hood enhances operator safety during operation and maintenance.
• Custom Conveyor Options: Optional motorized infeed/outfeed conveyors available in 1200 mm, 1500 mm, or 2000 mm lengths with panel guides.
• Rotating Hose Reel: Includes a steel-frame rotating reel with four swinging spindles and one expanding spindle for reels up to 300 mm, controlled manually.
• Color Options: Available in RAL 9002, RAL 5015, and RAL 1007 for seamless visual integration.
• Certified Safety Compliance: CE marked to meet European standards for safety and quality.

Technical Specifications:
